High Gloss Solvent CMYK Color Pigment Offset Printing Ink
Model: INK-F
Product Description
ECOO-INK-F offset printing ink is suitable for printing packaging, advertisements, labels, high-quality brochures and decorative products on art paper, coated paper, offset paper, cardboard, and similar materials. It is especially effective for both single-color and multi-color printing applications.
Key Features:
- Printing speed: 8,000-10,000 revolutions per hour
- Environmentally friendly formulation
- Excellent water/ink balance
- Rich printing layer quality
- Clear and complete printing dots
- Quick-drying performance with fast setting and turn times
Technical Specifications
| ITEM/TYPE |
TACK VALUE |
FLUIDITY (mm) |
PARTICLE SIZE (μm) |
SETTING TIME (min) |
DRYING TIME (hr) |
SKINNING TIME (hr) |
| F YELLOW |
6-7 |
35±1 |
15 |
4 |
< 10 |
>15 |
| F MAGENTA |
5.5-6.5 |
34±1 |
15 |
4 |
< 10 |
>15 |
| F CYAN |
6.5-7.5 |
35±1 |
15 |
4 |
< 10 |
>15 |
| F BLACK |
7-8 |
35±1 |
15 |
4 |
< 10 |
>15 |
Tack Value: Measured in 1 minute by inkometer at 32℃ and 400rpm
Set Time: Printing adapter, 157g art paper, ink-coating volume up to 0.125cc
Test Conditions: Room temperature 25℃, humidity 65%-75%
| ITEM/TYPE |
Light Resistance |
Heat Resistance |
Acid Resistance |
Alkaline Resistance |
Alcohol Resistance |
Soap Resistance |
| F YELLOW |
4 |
5 |
5 |
4 |
4 |
4 |
| F MAGENTA |
3 |
5 |
5 |
5 |
4 |
5 |
| F CYAN |
7 |
5 |
5 |
5 |
5 |
5 |
| F BLACK |
7 |
5 |
5 |
5 |
5 |
5 |
Light Fastness: 1-8 (weak-strong)
Other Resistance Ratings: 1-5 (weak-strong)
Production and Packaging
From production to delivery, we carefully monitor every detail to ensure product quality and service excellence for our customers.

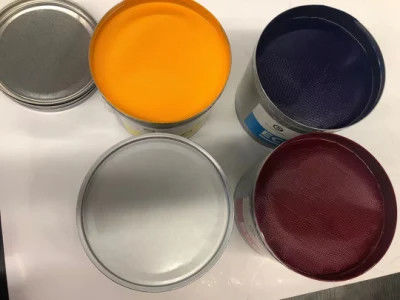

The standard packaging consists of aluminum cans containing 1 kg or 2.5 kg of ink. Six or twelve drums are packed in a carton with partition boards to protect each drum from collision. This packaging design features protective layers and secure positioning for safe transportation.
Frequently Asked Questions
Q1: What to do for specific color requirements from our company?
A: We can produce inks with specific colors or characteristics such as drying speed, odor, fade resistance, or gloss level. Please provide detailed ink samples or Pantone numbers for precise color matching.
Q2: How to store offset printing ink?
A: The ideal storage temperature for offset inks is between 18ºC-25ºC. Low temperatures may increase viscosity, causing flow issues, while high temperatures may cause low viscosity problems like misting. Store ink cans vertically away from direct sunlight.
Q3: Can I get samples?
A: We provide free samples (typically 4kg total - 1kg per can of CMYK colors). We request support for courier freight costs, which will be credited back with your first order.
Q4: Can I visit your factory?
A: You are welcome to visit our factory in Hangzhou, approximately 1.5 hours by train from Shanghai.
